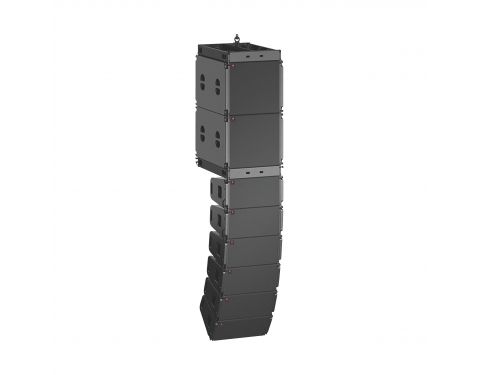

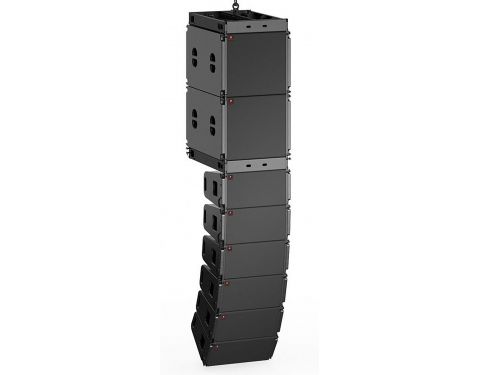

FA-310 is a special line array model which consists of two 10" high efficiency Neodymium LF drivers, two 8" cone Neodymium MF drivers, and two 3" compression Neodymium HF drivers. A newly developed wave former, positioned coaxially in the centre. The low-mid range is formed by two 10" long excursion bass speakers. It is remarkable that below 400 Hz all four cone speakers work together providing impressive reserves of low-mid and punch. The vertical dispersion is 10 degree, while 80 and 120 degree versions are available for the horizontal dispersion. FA-310 line array is for outdoor live show with very powerful long throw sound. But it's not just an impressive sound performance that makes a modern loudspeaker system a success. Ease and safety of operation, a quick setup and disassembly are also required.
For Medium-large scale venues such as stadium, theatre, music hall, concert hall, auditorium, night club, large discotheques, touring show, rental market etc.
FB-33S is a special design subwoofer with one 18" speaker in the front and one 15" speaker at the back. With bi-amp operation and the respective presets, different dispersion characteristics can be produced. The most successful research of these driver units is to make the sound deep, achieving reduction over 15 dB in the entire bass spectrum. The end-fire mode is best for maximum sound pressure in the front with simultaneous partial reduction at the rear.Because the directionality basses sound much more concrete and clear, especially in venues with a lot of reverb. And the musicians on the stage as well as those who behind the stage are spared off the effects of excessive bass levels. FB-33S subwoofer matches with FA-310 line array to maximize the sound effect.
Drivers | 2×10" Neodymium LF |
2×8" Neodymium MF | |
2×3" Neodymium HF | |
Frequency range | 60-16000 Hz |
Power Handing | 1000W RMS / 2000 W Peak LF |
800WRMS / 1600W Peak MHF | |
Impedance | 8 Ohms LF |
8 Ohms M/HF | |
Coverage (h×v) | 80°x10°oder 120° x 10° |
Sensitivity1 W / 1m | 98dB LF |
110 dB MHF | |
SPL max / 1 m | 141 dB |
Connection | NL41±MHF |
NL42±LF | |
Dimensions | H310×W700×D580 mm (0.2cbm) |
Weight | 42 kg |
Drivers | 1×18"FRONT1×15"REAR |
Frequency range | 33-120 Hz |
Power Handing | 2400W RMS/ 4800W Peak 18" |
2000 RMS/ 4000 W Peak 15" | |
4400W RMS/ 8800W Peak | |
Impedance | 8 Ohms 18" |
8 Ohms 15" | |
Coverage cardioid | hypercardioid |
Sensitivity | 1W/1m99dB |
SPL max | 1m134dB |
Connection | NL 41±=15" |
NL 42±=18" | |
Dimensions | H606×W700×D800 mm/0.5cbm |
Weight | 68 kg |
Finish | Birch Plywood |
