FA-12

Product description

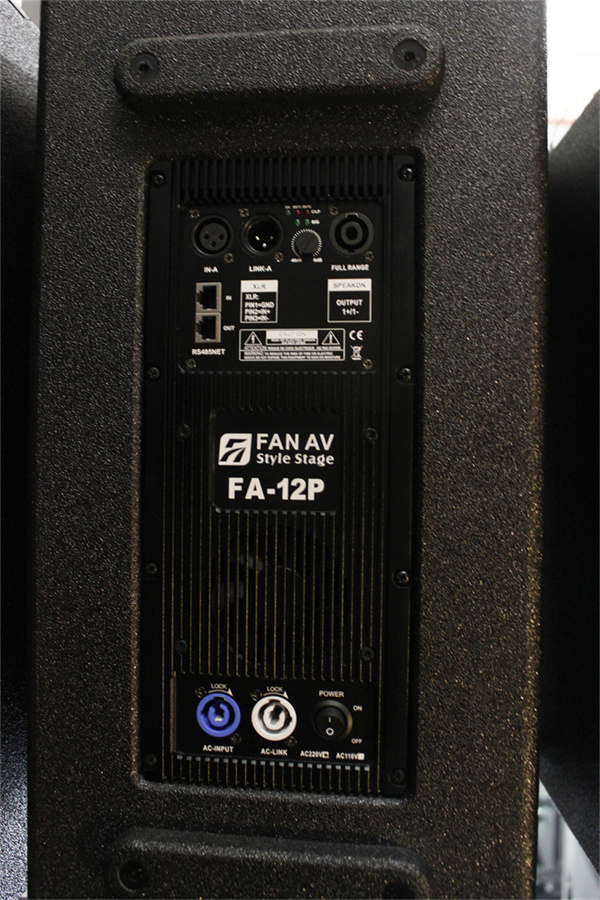

Model	FA-12 & FA-12P(Active)
Type	Line array system
Frequency Response	50Hz-18KHz±3dB
Power handling	LF 500W(RMS)1000W(PEAK)
Power handling	HF 160W(RMS)320W(PEAK)
Sensitivity	LF 102dbSPL
Sensitivity	HF 115dbSPL
Max@S. P.L	LF 130dbSPL peak
Max@S. P.L	HF 139dbSPL peak
Nominal impedance	16 ohm
LF section	1×12" Neodymium LF

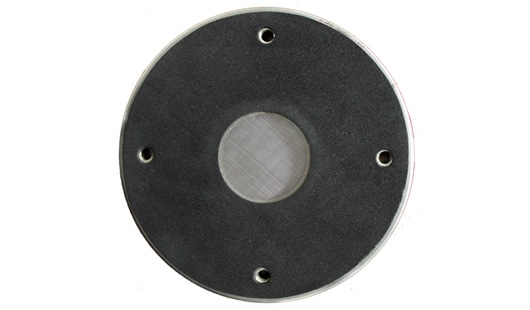

HF section	1×3" Neodymium HF
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110°H×10°V
Paint	Black wearproof polyurea paint
Speaker cables	1(+)1(-) 2(+)2(-)
Input connectors	2×NL4MP speakon ( LF±1 HF±2)
Dimensions	660×350×480mm(W×H×D)
Enclosure	15/18mm Birch Plywood
Net weight	30kg
Gross weight	32kg
