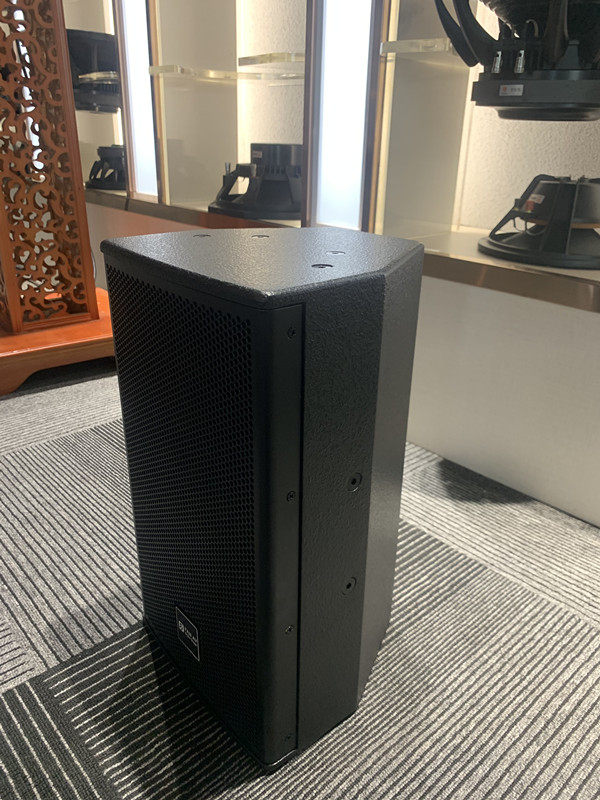

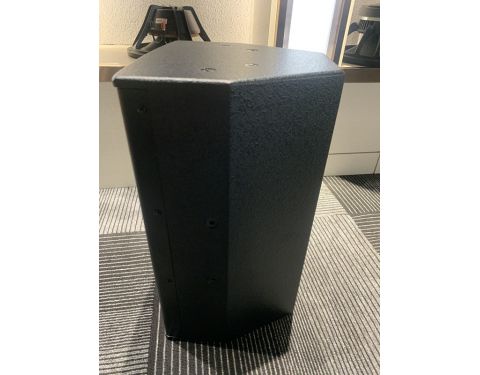

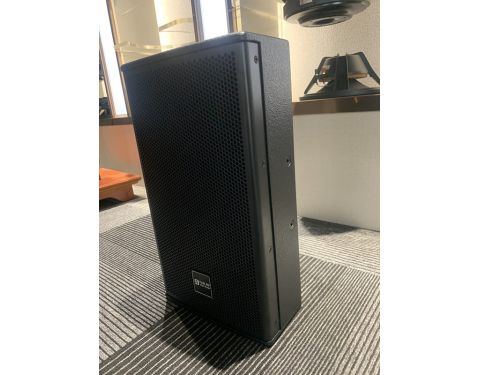

The cabinet of the F-8 speaker uses multi-layer high-density birch plywood. Computer software is used to calculate the best acoustic support point inside the cabinet. The concave-convex groove process is made to make the cabinet more solid. At the same time, high-strength reinforcement nails are used to hold the cabinet. The energy distortion caused by the resonance is minimized. The cabinet has a moisture-proof and dust-proof design to ensure stable work in dusty and humid environments.
It is the best choice for system engineering of high-end performances, conferences, evening parties and concerts.
Model : | F-8 |
System Type : | 8" 2-way Loudspeaker System |
Divers : | 1x8"woofers(2"Voice-cool) |
1x1" Voice coil HF driver | |
Frequency : | 45Hz 〜20KHz(±3dB) |
Sensitivity : | 98dB |
Maximum SPL : | 117dB SPL, 123dB SPL peak |
Nominal Impedance : | 8 Ohms |
Power : | RMS:300W Peak:600W |
Dispersion : | Hor:90°x Vert:60° |
Connectors : | 2 x Speakon NL4MP |
Dimensions : | 406x359x280mm(HxWxD) |
Weight : | 11kg |
