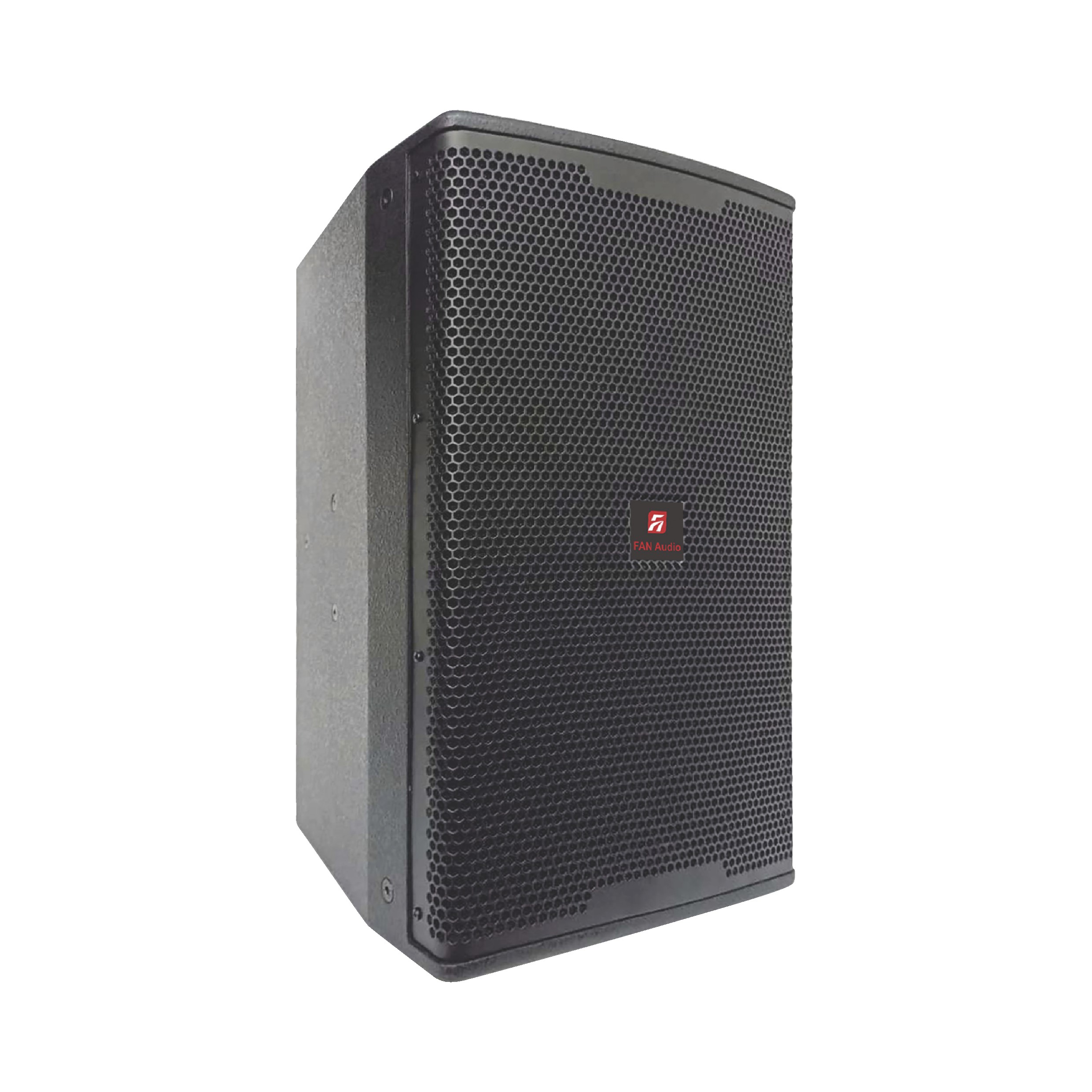

Best Line Array Speakers
Product description
| Model | L-10 |
| Type | Two-way,10"full range system |
| Frequency Response | 90Hz-20kHz（±3dB) |
| Power handling | 400（WRMS） 800（WPEAK） |
| Sensitivity | 95 dB (1W@1M) |
| Max@S.P.L（1m） | 122 dB (128 dB peak) |
| LF section | 10"(210mm) wopfer 51 mm （2in）coil |
| HF section | 1.4" compression driver with 34mm |
| Nominal impedance | 8 ohm |
| Output section | 2-channel |
| Dispersion pattern | 80°x 70° (H x V) |
| Surface finish | Black Emery water paint |
| Speaker cables | +1-1 |
| Input connectors | 2 x Neutrik® Speakon® NL4MP |
| Dimensions | 524 mm x 300 mm x 340 mm |
| Enclosure | Birch plywood |
| Net weight | 11.9 Kg |
