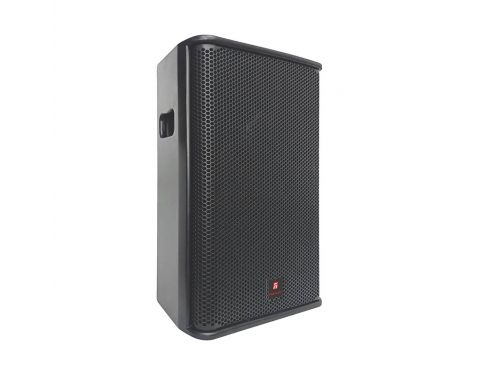

Model | P-12 |
Type | Two-way,12"full range system |
Frequency Response | 42Hz-18 KHz (±3dB) |
Power handling | 600(WRMS) 1200(WPEAK) |
Sensitivity | 97 dB (1W@1M) |
Max@S.P.L(1m) | 127 dB (130 dB peak) |
LF section | 12"(310mm) wopfer 75mm coil |
HF section | 1.75" compression driver with 44mm |
Nominal impedance | 8 ohm |
Output section | 2-channel |
Dispersion pattern | 50° to 100° Hor. x 55° Vert. |
Surface finish | Black Emery water paint |
Speaker cables | +1-1 |
Input connectors | 2 x Neutrik® Speakon® NL4MP |
Dimensions | 580mm x 330mm x 365 mm |
Enclosure | Birch plywood |
Net weight | 20.0 Kg |
